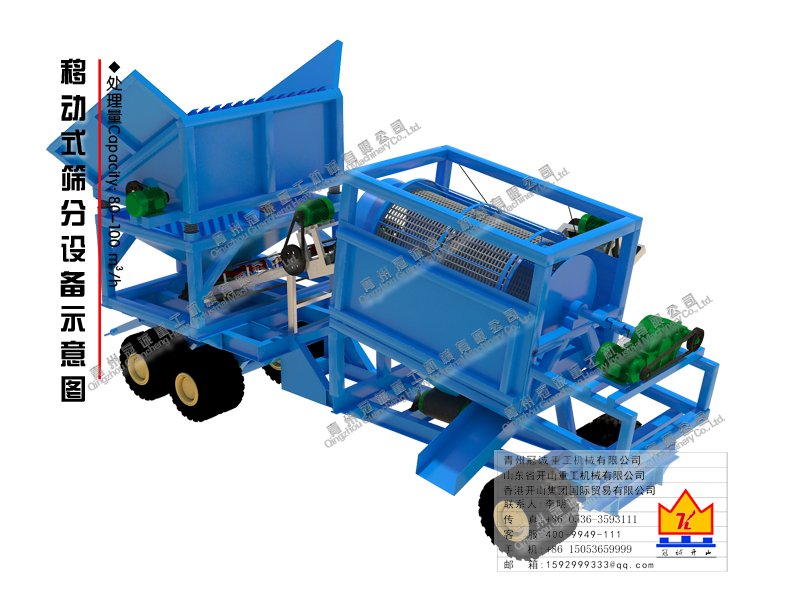

【重選篩分車簡介】

    本套設備為重選移動篩分車，主要用于各種礦物初步的選別工作，滾筒篩為雙層滾筒篩，外層篩網可以根據實際需求更換，可以適應各種規格的礦物選別工作。該篩分車處理量大、工作穩定，可以配合其它重選選礦設備共同使用。

【流程概述】

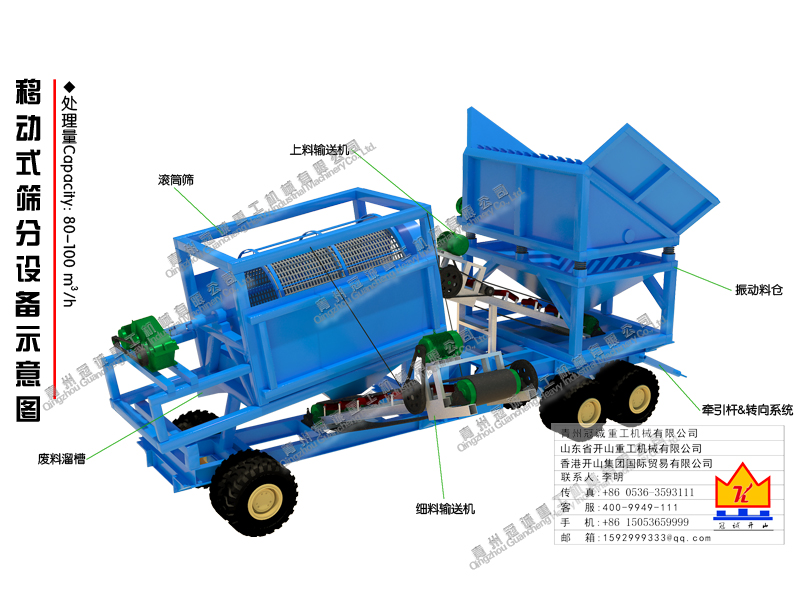

原料通過工程機械送入振動料倉，首先篩選出大于8CM的不合格物料，減少滾筒篩磨損，增加工作效率；小于8CM的物料由上料輸送機送入滾筒篩內進行篩選分級，分為細料與粗料兩種規格。其中粗料（即廢料）直接通過廢料溜槽排出至指定區域；細料由細料輸送機輸送至指定區域。

Raw materials is feeding into the vibration silo through the construction machinery, screening out more than 8cm of substandard materials to reduce the drum sieve wear and reduce work efficiency; he material less than 8cm will feeding into drum sieve for screening classification from the material conveyor, divided into fine material and coarse material. Wherein the coarse material is discharged directly to the designated area through the oversize discharge chute; the fine material is conveyed to the designated area by the fine material conveyor.

【技術參數】

外形尺寸：長約9.3米（不含牽引桿），寬約6.5米（含輸送機與溜槽）

上料高度：約4.4米

滾筒篩：雙層，內直徑1.3米，外徑1.6米，凈篩網長度2米，功率11KW

底盤：帶牽引桿及轉向系統，3軸12條輪胎，輪胎規格：900-2#

細料輸送機：皮帶寬度600mm，桿長4米，功率3KW

上料輸送機：皮帶寬度600mm，桿長3.5米，功率3KW

振動料倉：3000*2000mm，偏心軸振動式，功率7.5KW

總功率：24.5KW

Dimensions: about 9.3 meters (excluding traction rod), about 6.5 meters (including conveyor and chute)

Feeding height: about 4.4 meters

Drum screen: double, the inner diameter of 1.3 meters, 1.6 meters outside diameter, net screen length of 2 meters, power 11KW

Chassis: with drawbar and steering system, 3-axis 12 tires, tire specifications: 900-2 #

Felt conveyor: belt width 600mm, pole length 4 meters, power 3KW

Feeding conveyor: belt width 600mm, rod length 3.5 meters, power 3KW

Vibration silo: 3000 * 2000mm, eccentric shaft vibration, power 7.5KW
